Lift & Dump Dumpers

Pioneer stands as a frontrunner in controlled dumping technology. With our robust design, you can efficiently and safely unload Gaylords, hoppers, bins, carts, totes, drums, and bales containing both free-flowing and sluggish materials.

Dumper Options

Automated controls

VFD “soft pour” option

Straight or angled discharge chutes

Extended discharge chutes

Quick adjust retainer bars

Variable speed drive “soft pour”

Stainless buckets and liners

Wide bucket options

UHMW liners for pre-form dumping

Safety cages

Peg style retainers for less flow interference

Lift & Dump Dumper Models

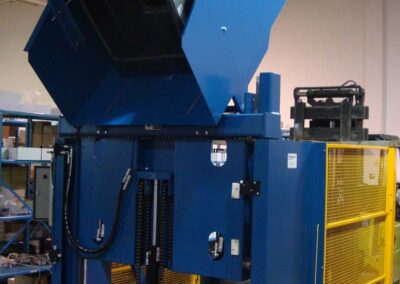

Model LD-100, 200, 300, 400, 500

Standard Features:

  • Heavy duty steel construction
  • 2500lb capacity
  • 72” – 180” dump heights
  • 52” wide bucket
  • 135 degree rotation
  • 5” x 24” stroke tilt cylinders
  • 3” lift cylinder w/ velocity fuse
  • Mechanical / chain lift assist
  • Rulon CJ lube free bushings
  • Remote power unit
    • 3HP – 5HP, 460V, 3PH TEFC motor
    • Parker 2-4GPM pump
    • Parker directional valves
    • Sun counterbalance valve
    • Flow control, relief, filter, gage
  • NEMA 12 Hoffman control panel w/ Up / Down momentary push buttons
  • AB tilt limit, up limit and down limit switches
  • Straight discharge chute
  • Over travel stop
  • Bolt down foot pads
  • Industrial epoxy paint

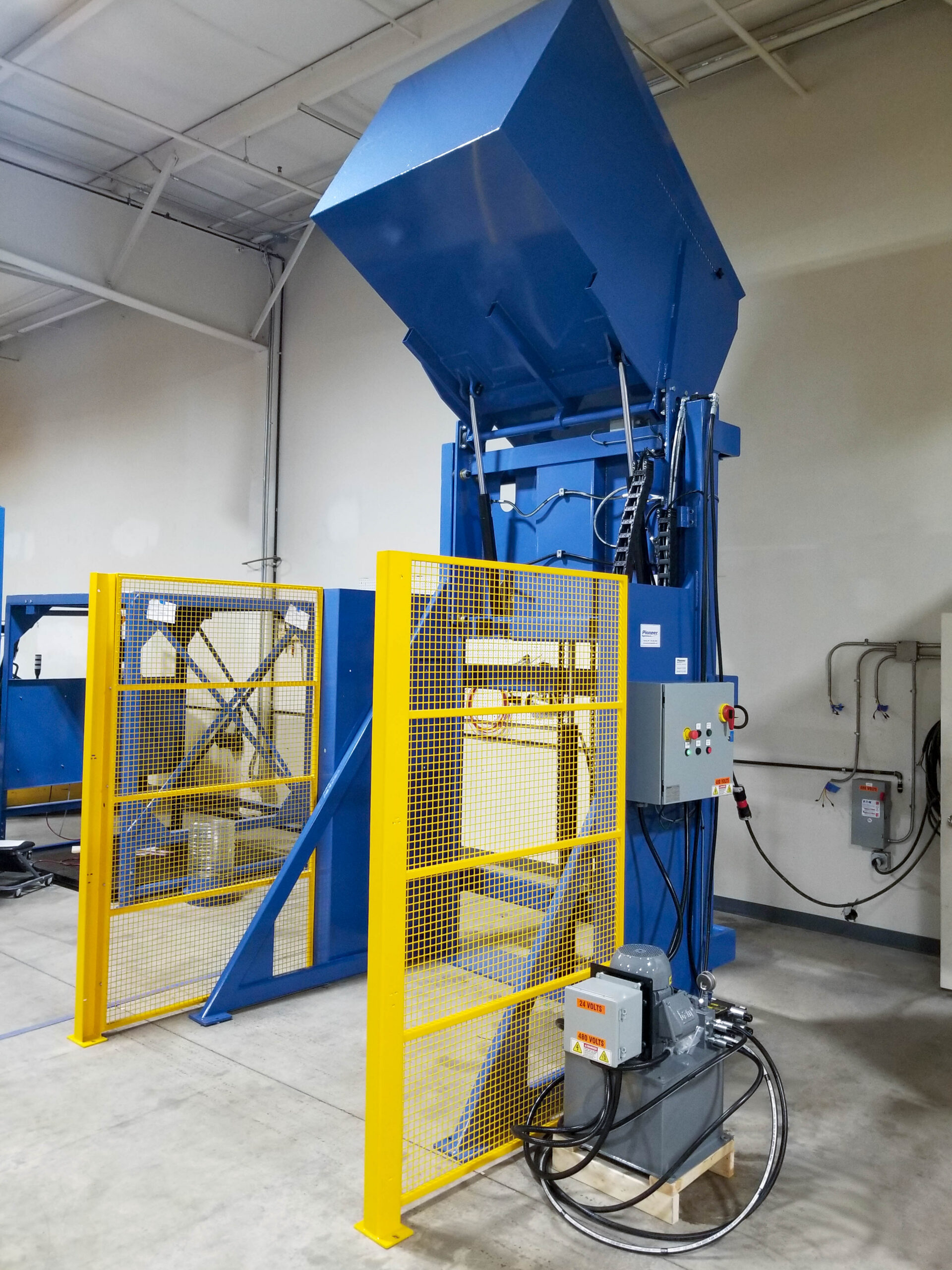

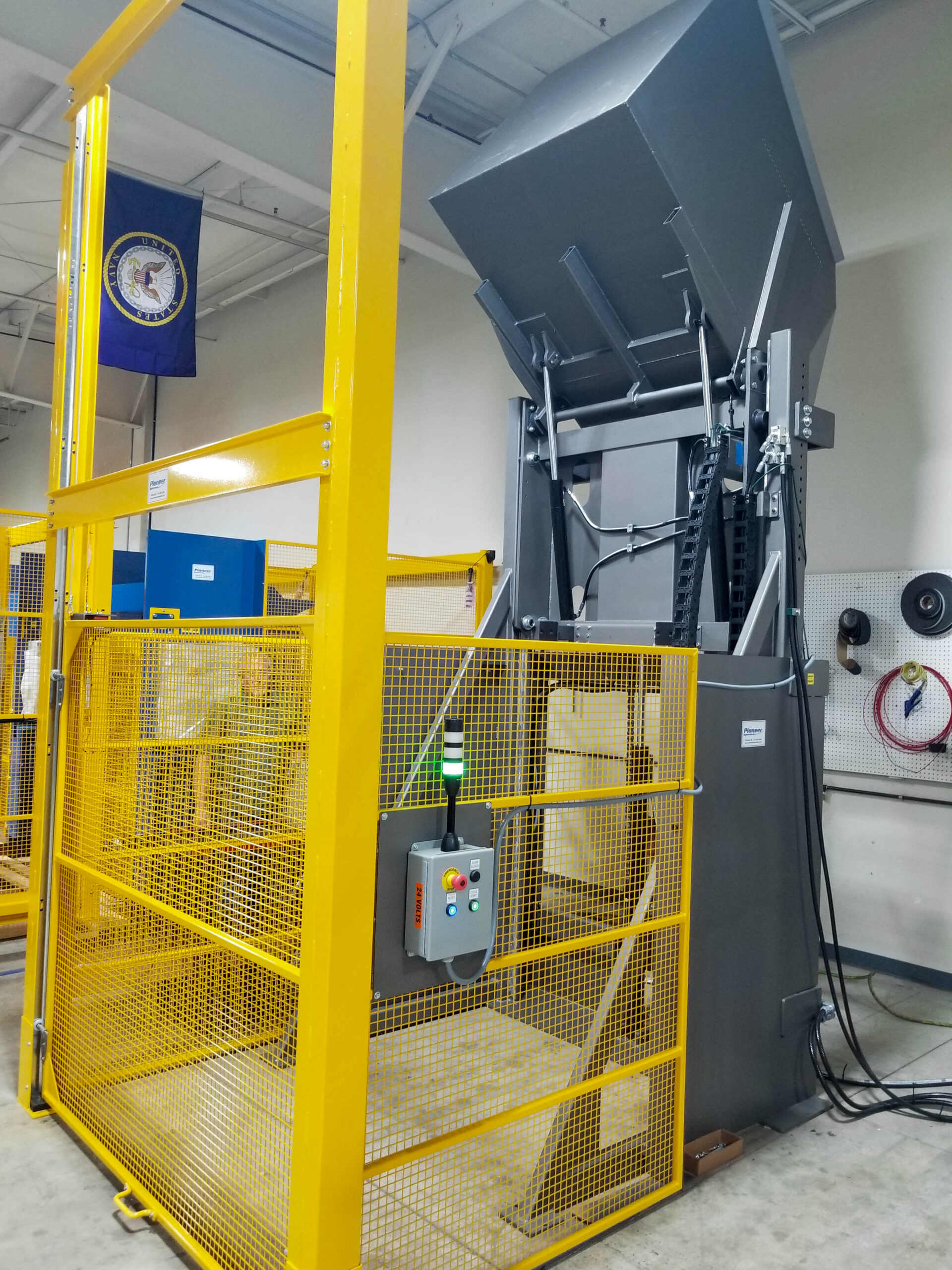

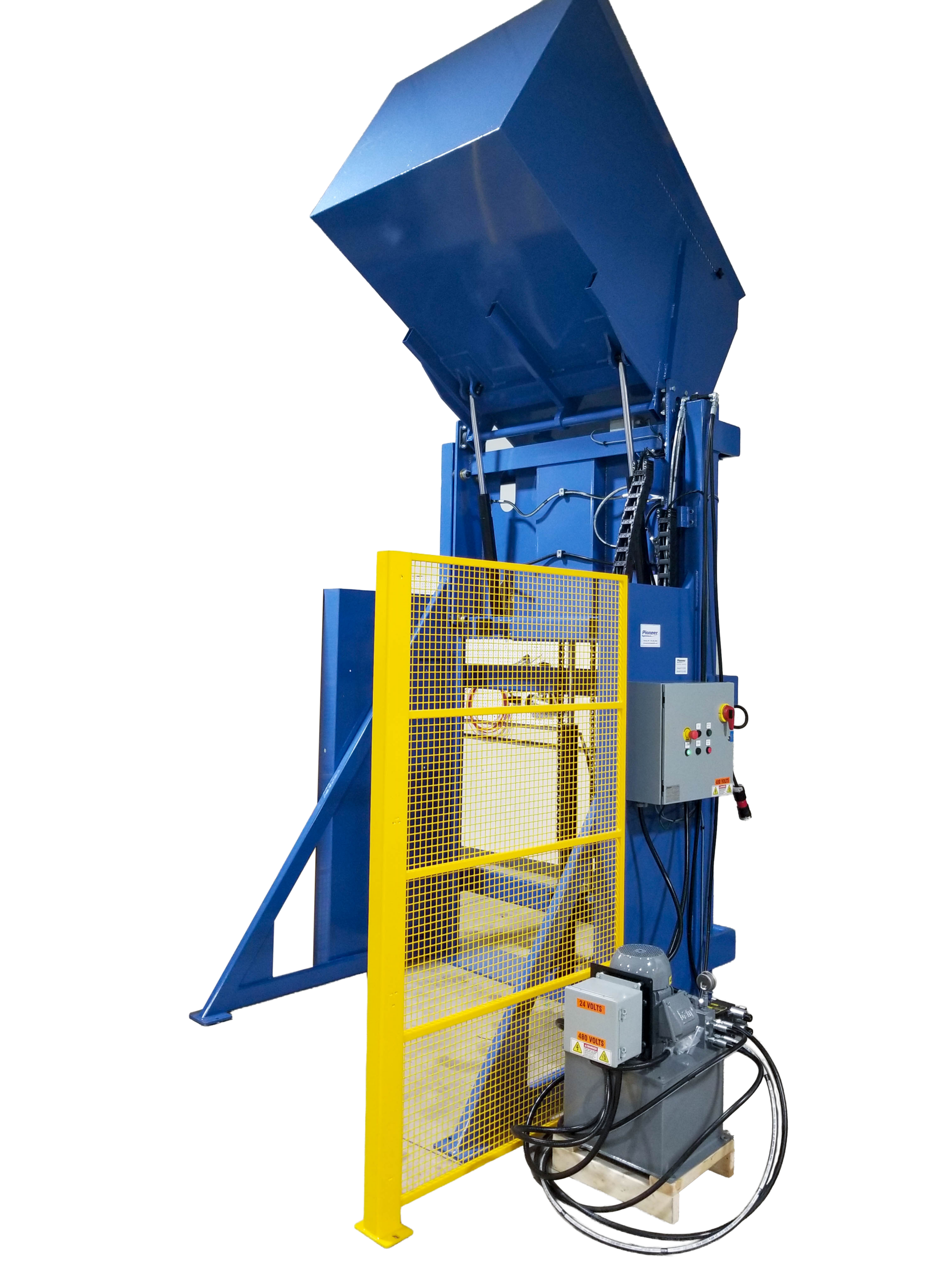

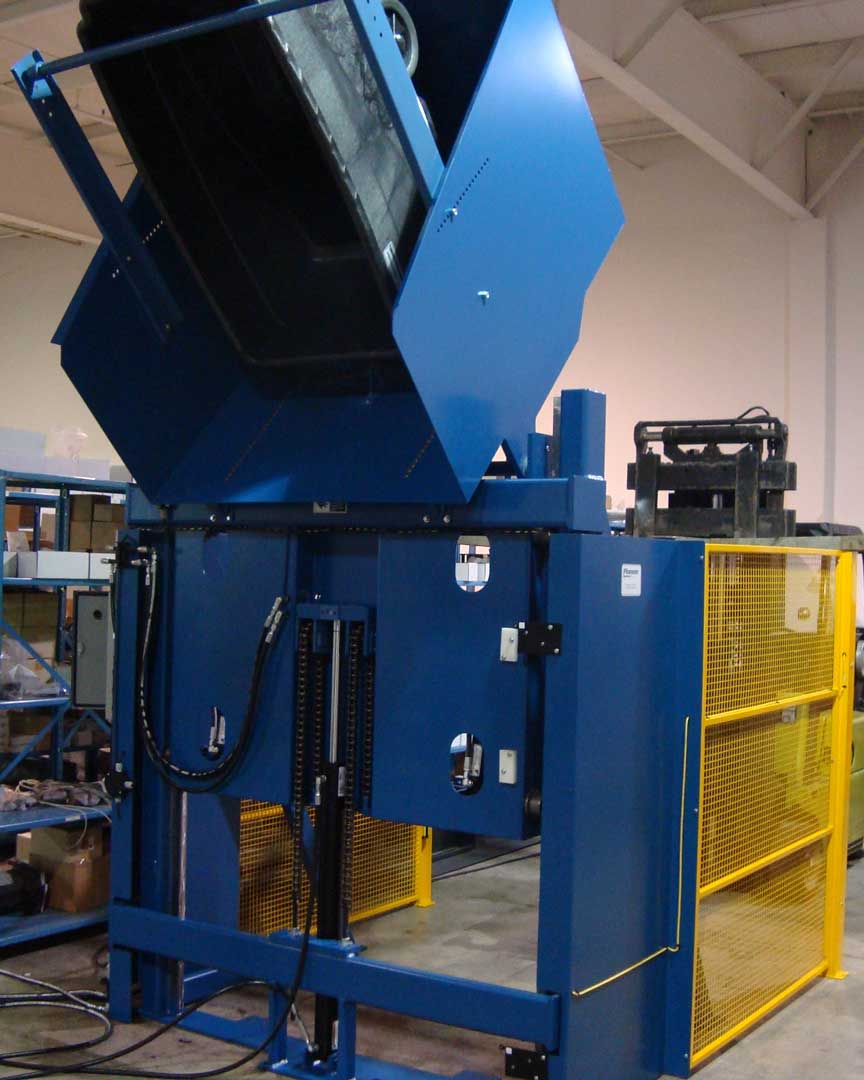

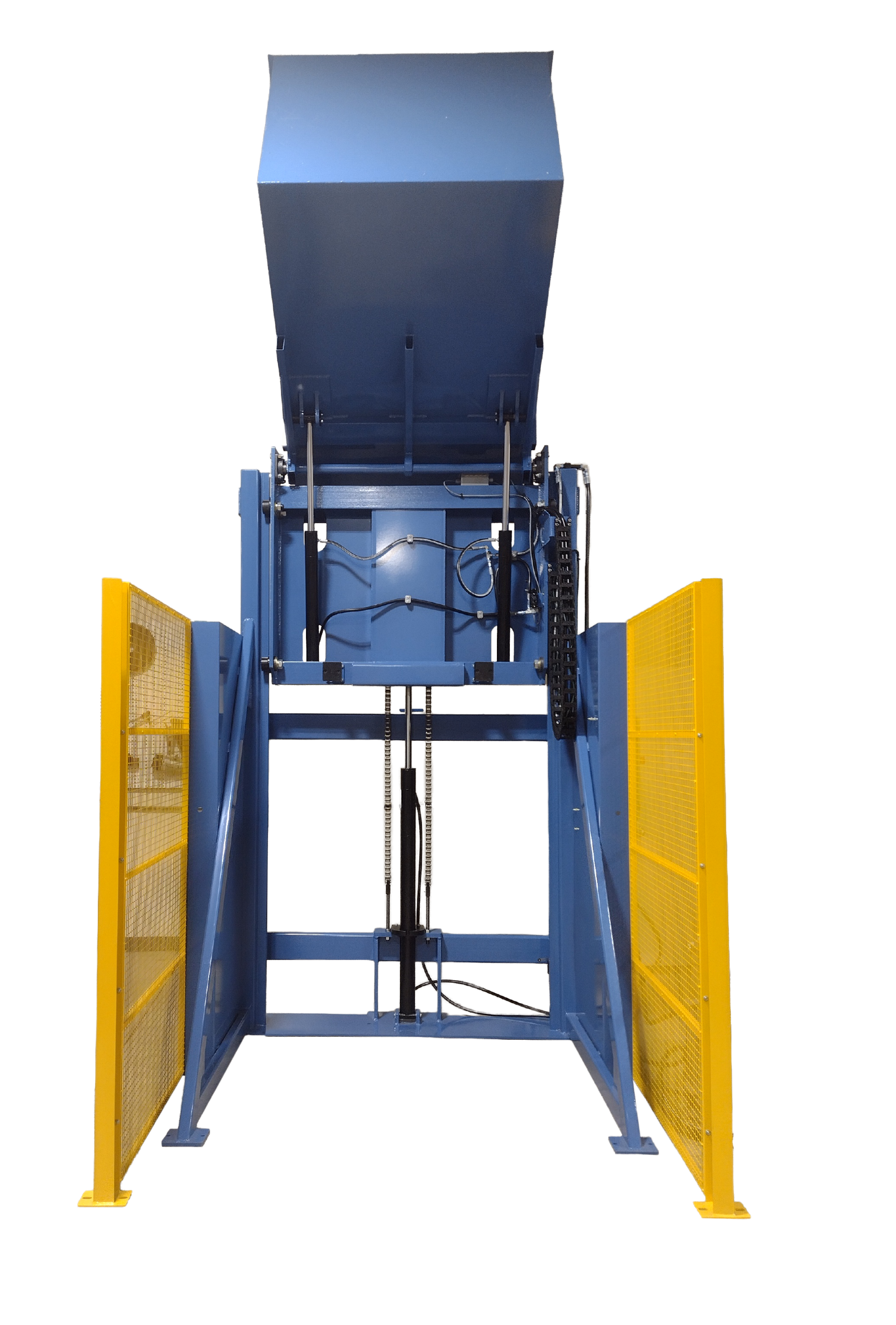

Lift & Dump Photos
